Airfiltronix G-46 Containment Hood | Medical Equipment Source

Airfiltronix G-46 Containment Hood | Medical Equipment Source

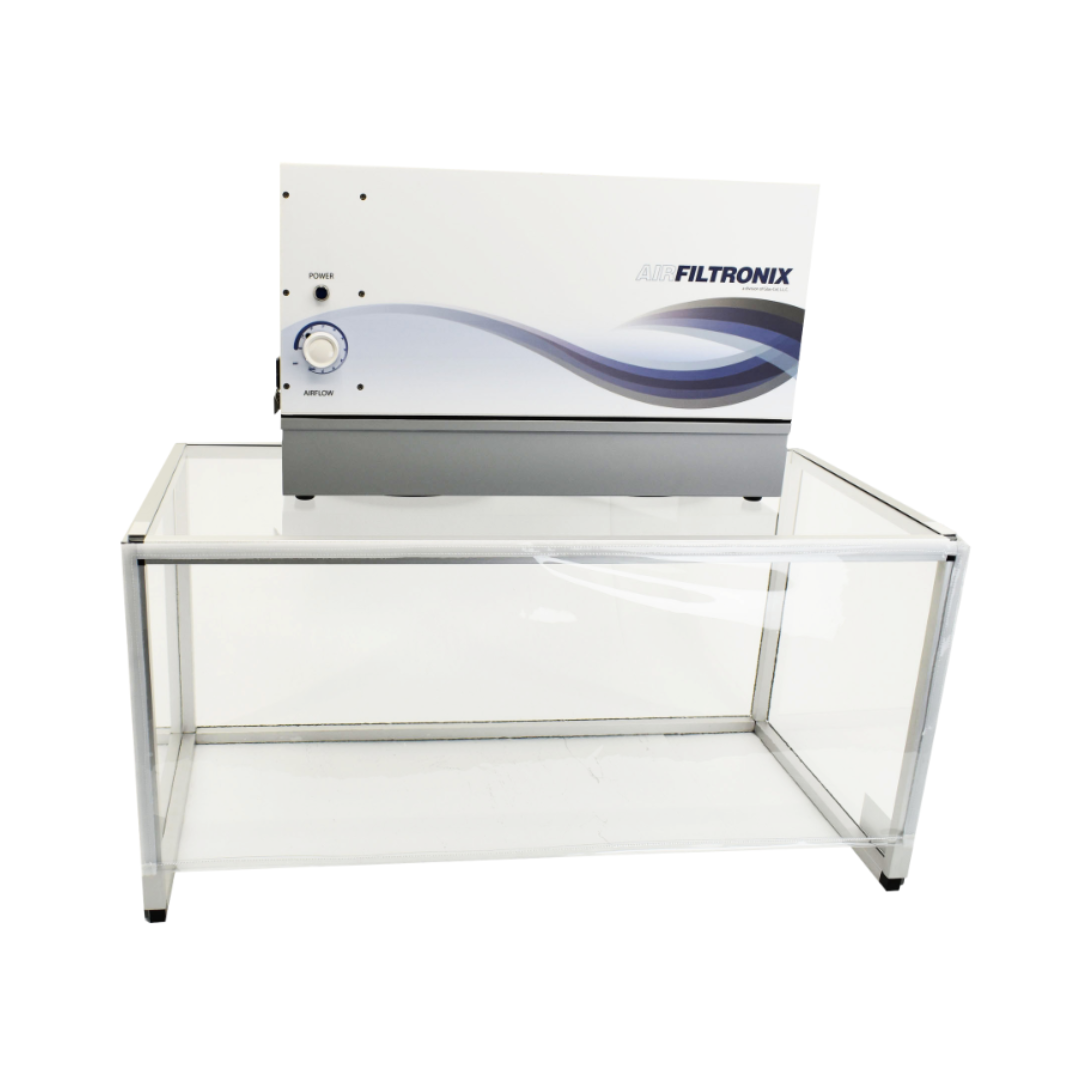

The Airfiltronix G-46 Containment Hood offers a clear and spacious enclosure suitable for laboratory, research, and industrial environments. As part of the series containment hood systems, it supports operations under negative pressure to maintain a controlled environment while preventing airborne contaminants from escaping into the work area.

Key Features

  • Systems are designed to enclose materials and operations under negative pressure

  • Prevents airborne contaminants from escaping into the work environment

  • Acrylic and polycarbonate enclosure with sturdy aluminum framing

  • Contaminated air is drawn inward toward selected filter media

  • Blower and filter units with a dynamically balanced backward curved impeller

  • Moves up to 530 CFM in free air at less than 68 dB

  • Supports multiple substance filtration

  • Curtain providing easy access while maintaining airflow stability

  • Optional venting adapter for facilities with specialized requirements

  • Ability to order with custom sizes or request custom sizes and features

Applications

  • Handling vapors, particulates, powders, and odor-producing materials

  • Research labs, clinical environments, education, and industry

  • Procedures requiring consistent airflow direction and containment stability

  • Facilities without an existing venting system that need a ductless alternative

Specifications

Category Specification
Construction Acrylic and polycarbonate panels with sturdy aluminum framing
Blower Type Backward curved impeller, 530 CFM in free air
Motor High efficiency brushless AC motor
Noise Level Less than 68 dB at 1 meter
Voltage 115 V AC
Frequency 50 to 60 Hz
Power 100 Watts
Export Option 230 V AC available

Performance by Filter Setup

Filter Configuration Airflow (CFM) Face Velocity (FPM)
No Filter 320 700
HEPA Only 165 360
HEPA + Dacron + 0.5 in Carbon 144 315
HEPA + Dacron + 2 in Carbon 98 215
0.5 in Carbon Only 250 545
2 in Carbon Only 131 285
Two 2 in Carbon Filters 101 220

Included Accessories

  • Clear access curtain

  • Blower and filter housing modules

  • Compatible with HEPA, carbon, and combination filters (sold separately)

Warranty

Airfiltronix provides a 12-month warranty covering defects in materials and workmanship under normal use. Filters and consumables are excluded. Units must be returned in original or equivalent packaging.

Optimize Your Workflow Today

The Airfiltronix G-46 Containment Hood provides reliable airflow control, strong visibility, and effective containment for procedures that generate airborne hazards. Its balanced performance and versatile filtration options make it a dependable solution for modern laboratory and industrial environments. Contact Medical Equipment Source to integrate this hood into your facility.
