Airfiltronix G-36 Containment Hood | Medical Equipment Source

Airfiltronix G-36 Containment Hood | Medical Equipment Source

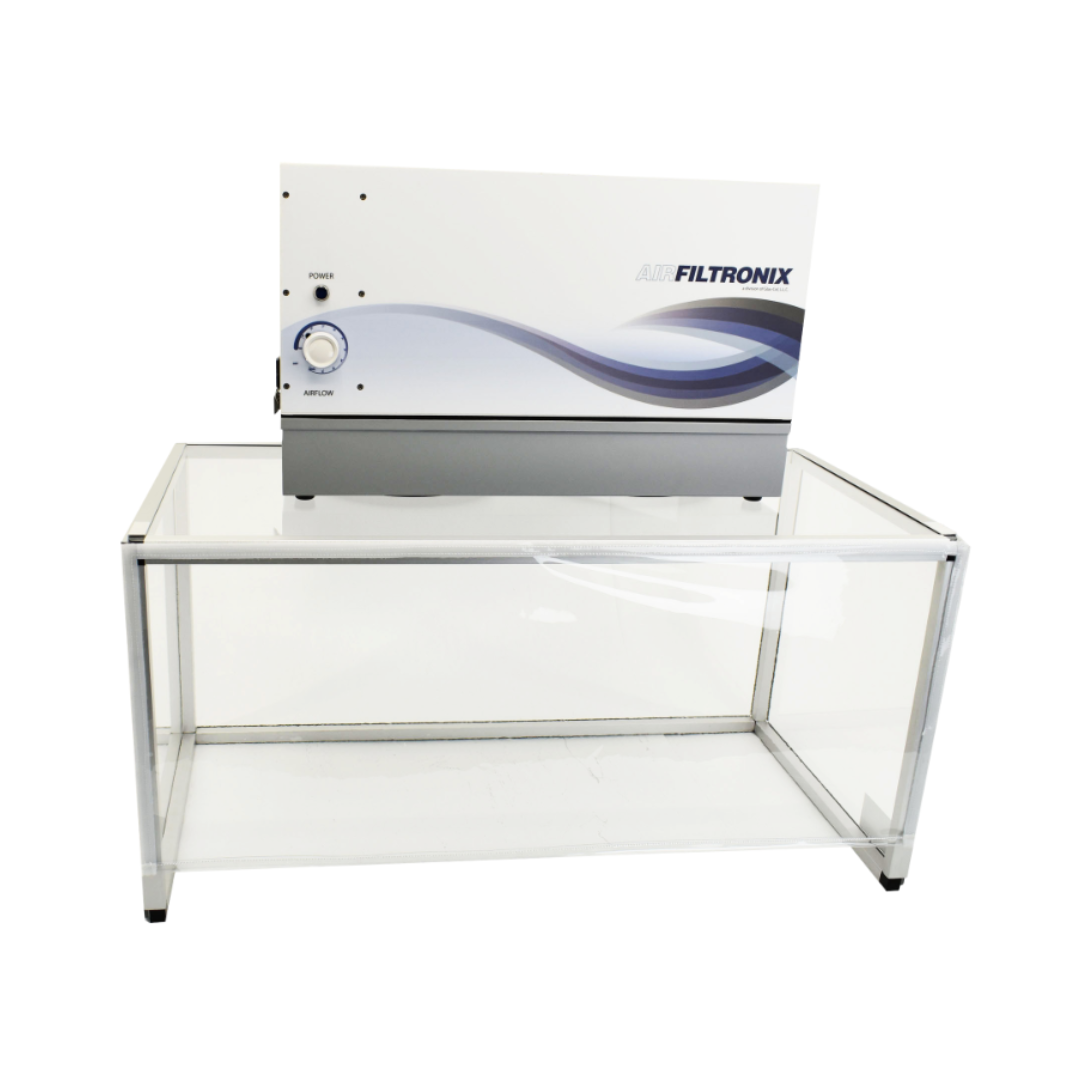

The Airfiltronix G-36 Containment Hood offers a wide, 36-inch enclosed workspace built to protect operators by preventing airborne contaminants from escaping into the work environment. As part of the series containment hood systems, it provides a ductless, self-contained solution where contaminated air is drawn through specialized filters designed to handle vapors and particulates.

Clear acrylic and polycarbonate panels with sturdy aluminum framing deliver visibility and durability, while the blower and filter units mounted on top of the hood ensure efficient airflow control.

Key Features

  • 36-inch wide containment area for expanded workspace

  • Acrylic and polycarbonate panels with sturdy aluminum framing

  • Blower and filter units mounted on top of the hood

  • Contaminated air is drawn inward to maintain negative pressure

  • Dynamically balanced backward curved blower design

  • Moves up to 530 CFM in free air with a high efficiency brushless AC motor

  • Noise level of less than 68 dB at one meter

  • Clear vinyl curtain offers easy access while maintaining optimal airflow

  • Multiple filter combinations available for vapors and particulates

  • Compatible with an alternatively a venting adapter for external venting

  • Blower/filter assembly may be remotely mounted when required

Applications

  • Laboratory environments involving chemical vapors, powders, or odors

  • Workflows that require preventing airborne contaminants from escaping into the work environment

  • Bench-top negative pressure containment

  • Research, medical, educational, and industrial settings

Specifications

Category Specification
Model G-36
Overall Dimensions 32.5 in H × 36 in W × 18 in D
Workspace Dimensions 17 in H × 34 in W × 17 in D
Weight 63 lb
Construction Acrylic and polycarbonate panels with sturdy aluminum framing
Noise Level ≤ 68 dB at 1 meter
Blower Backward curved impeller, 530 CFM in free air
Motor High efficiency brushless AC motor
Voltage 115 V AC (230 V optional for export)
Frequency 50–60 Hz
Power Consumption 100 Watts

Performance by Filter Setup

Filter Configuration Airflow (CFM) Face Velocity (FPM)
No Filter 320 700
HEPA Only 165 360
HEPA + Dacron + 0.5 in Carbon 144 315
HEPA + Dacron + 2 in Carbon 98 215
0.5 in Carbon Only 250 545
2 in Carbon Only 131 285
Two 2 in Carbon Filters 101 220

Included Accessories

  • Clear vinyl access curtain

  • Blower and filter housing

  • Compatible with Airfiltronix HEPA filters, activated carbon filters, and prefilters (sold separately)

Warranty

Airfiltronix provides a 12-month warranty covering defects in materials and workmanship under normal use. Filters and consumables are not covered. Units must be returned in original or equivalent packaging for service.

Optimize Your Workflow Today

Improve safety and environmental control in your laboratory with the Airfiltronix G-36 Containment Hood. This wide-format hood delivers airflow stability, flexible filtration options, and dependable containment for workflows involving vapors and particulates. Contact Medical Equipment Source to add this essential containment system to your facility.
