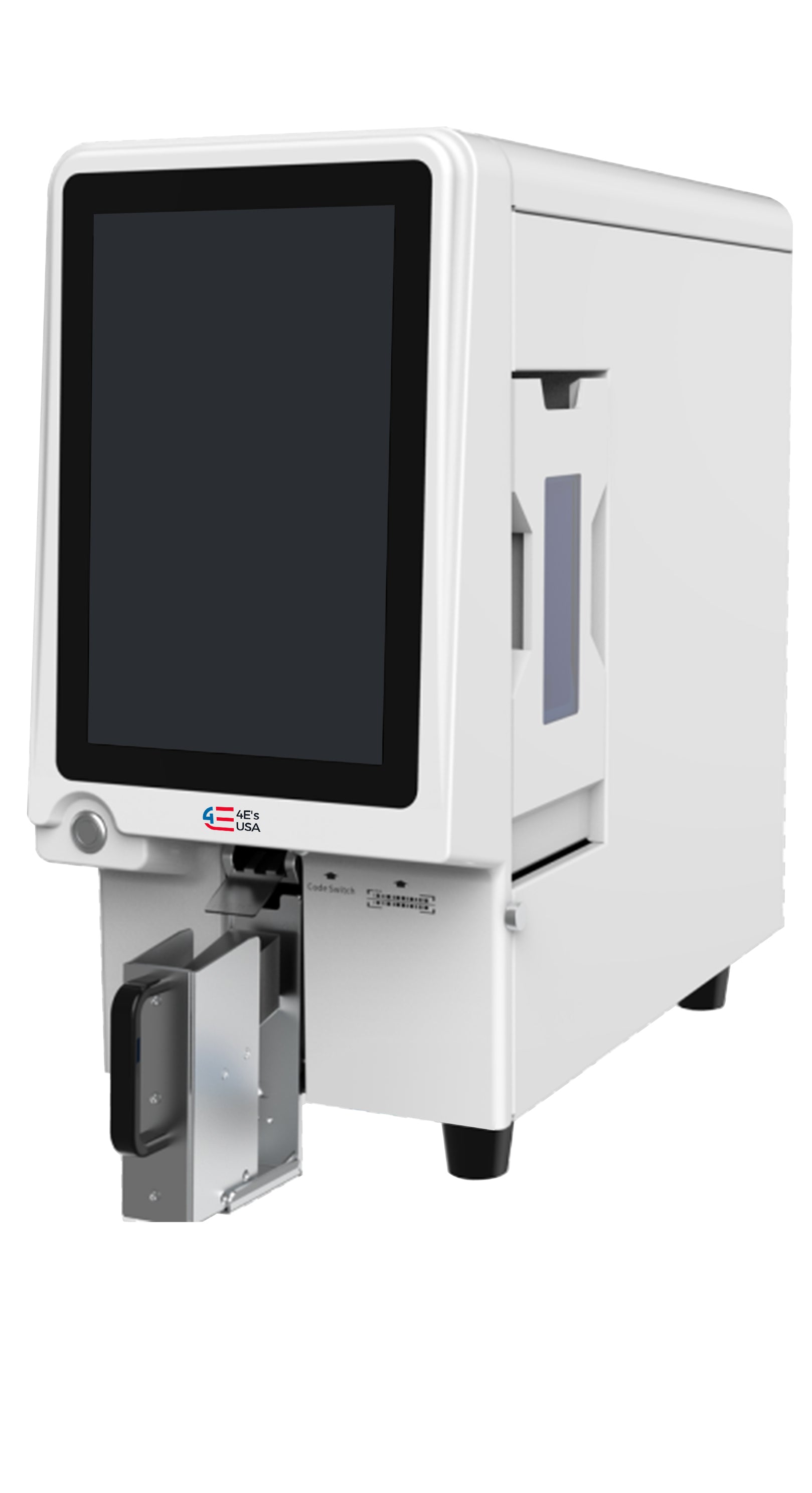

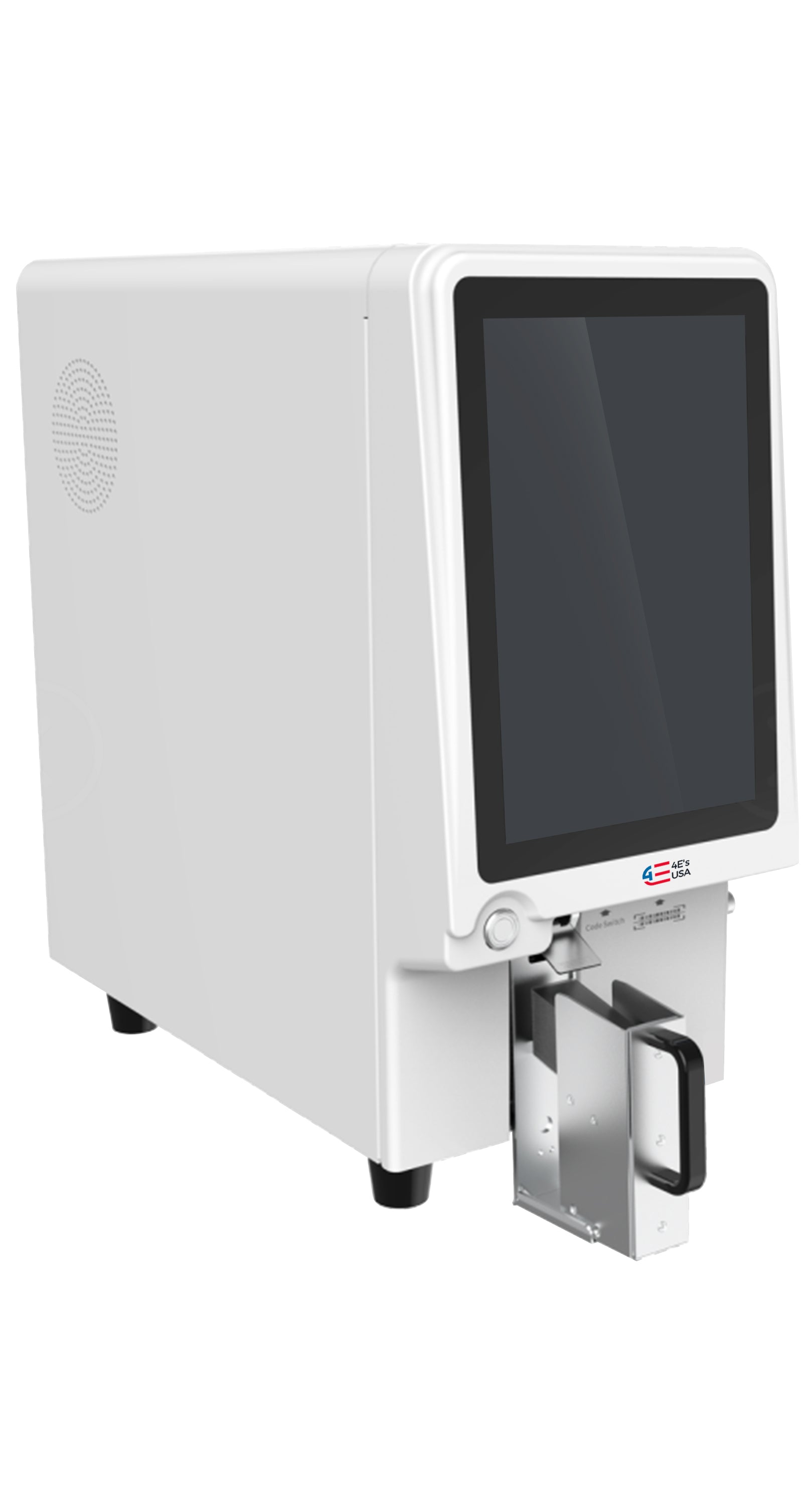

The 4E's USA UVP201001 UV Microscope Slide Printer is a next-generation laboratory slide printer that uses ultraviolet laser technology to mark microscope slides without ink or consumables. Instead of applying ink, the laser physically etches text, symbols, and barcodes directly into the slide surface, creating permanent markings resistant to solvents and laboratory chemicals.
Designed for modern histology and pathology workflows, the 4E's USA slide printer provides fast and reliable slide identification with printing completed in under three seconds. The integrated 10-inch color touchscreen interface allows users to configure print templates and enter data quickly, while built-in barcode scanning and software integration allow the printer to connect directly to laboratory information management systems.
Features
-
Ultraviolet laser printing technology for consumable-free printing
-
Permanent markings etched directly into the slide surface
-
Prints text, symbols, barcodes, and QR codes
-
Ultra-fast printing speed under 3 seconds per slide
-
Large 10-inch color touchscreen for configuration and data entry
-
Built-in barcode scanner for quick data input
-
Removable slide trays for efficient workflow management
-
Safety sensors to detect slide tray attachment and capacity
-
Template configuration for laboratory-specific labeling needs
-
Compatible with LIMS and HIMS systems for automated data printing
-
Bulk import software for slide data printing
-
Can operate independently or integrated with tissue cassette printers or information management systems
Specifications
|
Model |
UVP201001 |
|
Input voltage / frequency |
AC 100–240 V, 50/60 Hz |
|
Laser type |
Long-life ultraviolet laser printer |
|
Slide capacity |
100 slides |
|
Printing capabilities |
Text, symbols, barcodes, QR codes; multiple formats of linear and 2D barcodes |
|
Print speed |
< 3 seconds per slide |
|
Display |
10-inch color touchscreen |
|
Slide trays |
1 bulk printing tray, 1 small batch tray |
|
Interchangeable slide tray |
Yes |
|
Removable slide fill tray |
Yes |
|
Built-in barcode scanner |
Yes |
|
LIMS / HIMS compatibility |
Yes |
|
Batch upload software |
Included |
|
Control system |
Embedded |
|
UV printer lifespan |
More than 3 million slides |
|
Air purification system |
Yes |
|
Connection types |
2 × Ethernet, 4 × USB, 1 × VGA, 1 × COM, 1 × HDMI |
|
Permissible ambient temperature |
5–40 °C |
|
Permissible humidity |
80% |
|
Dimensions (W × D × H) |
200 × 470 × 400 mm / 7.9 × 12.6 × 16 in |
|
Weight |
19 kg (42 lbs) |
|
Printing Resolution |
2500 dpi |
Warranty
The 4E's USA UVP201001 UV Laser Slide Printer is covered by a 1-year manufacturer warranty from 4E's USA against defects in materials and workmanship. Please contact Medical Equipment Source for full warranty terms and service support.
MES offers compatible accessories for this printer, including a replacement exhaust filter. Reach out to our team for recommendations and a customized quote.
